SENTEC 3D Printing Sand Mixer

An Intelligent High-Tech Solution Tailor-Made for the Foundry Industry

The SENTEC 3D Printing Sand Mixer is a high-tech intelligent system specifically designed for modern foundries.
By innovatively integrating advanced 3D printing technology with proven traditional sand mixing processes, it突破s the limitations of conventional sand mold preparation and enables fast, precise, and integrated production of complex sand molds and cores.

Whether for small-batch customized production or large-scale standardized manufacturing, the system delivers an efficient, reliable, one-stop sand mixing solution.

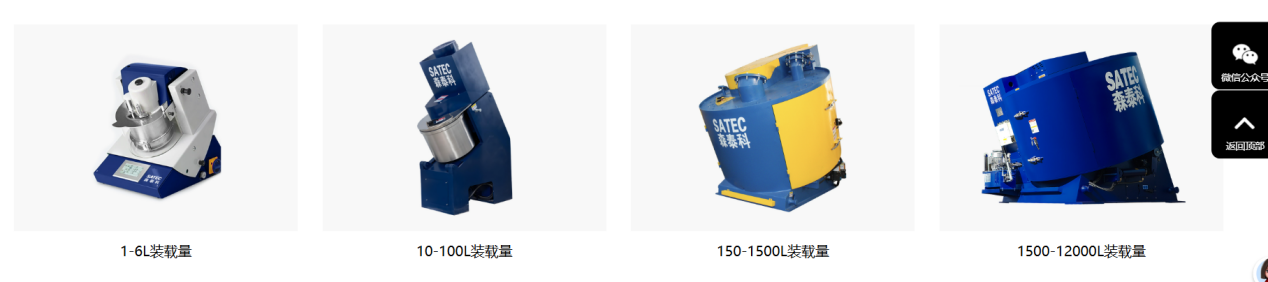

With a wide processing capacity ranging from 0.3 t/h to 60 t/h, the SENTEC sand mixer flexibly adapts to different production scales, empowering the foundry industry to accelerate its transformation toward intelligent and digital manufacturing.

Core Process Expertise in Foundry 3D Printing Sand Mixing

Backed by extensive technical expertise across the entire sand processing workflow, SENTEC provides customers with a stable, reliable, and fully integrated sand mixing system solution.

From:

• Pre-mixing homogenization,

• Precise moisture content measurement and dynamic correction,

• to final intensive mixing and discharge,

every step is standardized and precisely controlled. This eliminates the influence of external variables throughout the process, ensuring consistent, controllable, and highly repeatable sand quality.

The discharged composite sand is ready for immediate use, featuring:

• Excellent flowability

• Exceptional uniformity

• Zero agglomeration

This makes it perfectly suited for 3D printing of complex sand molds and cores, laying a solid foundation for digital foundry production.

Core Features of the 3D Printing Intensive Sand Mixer

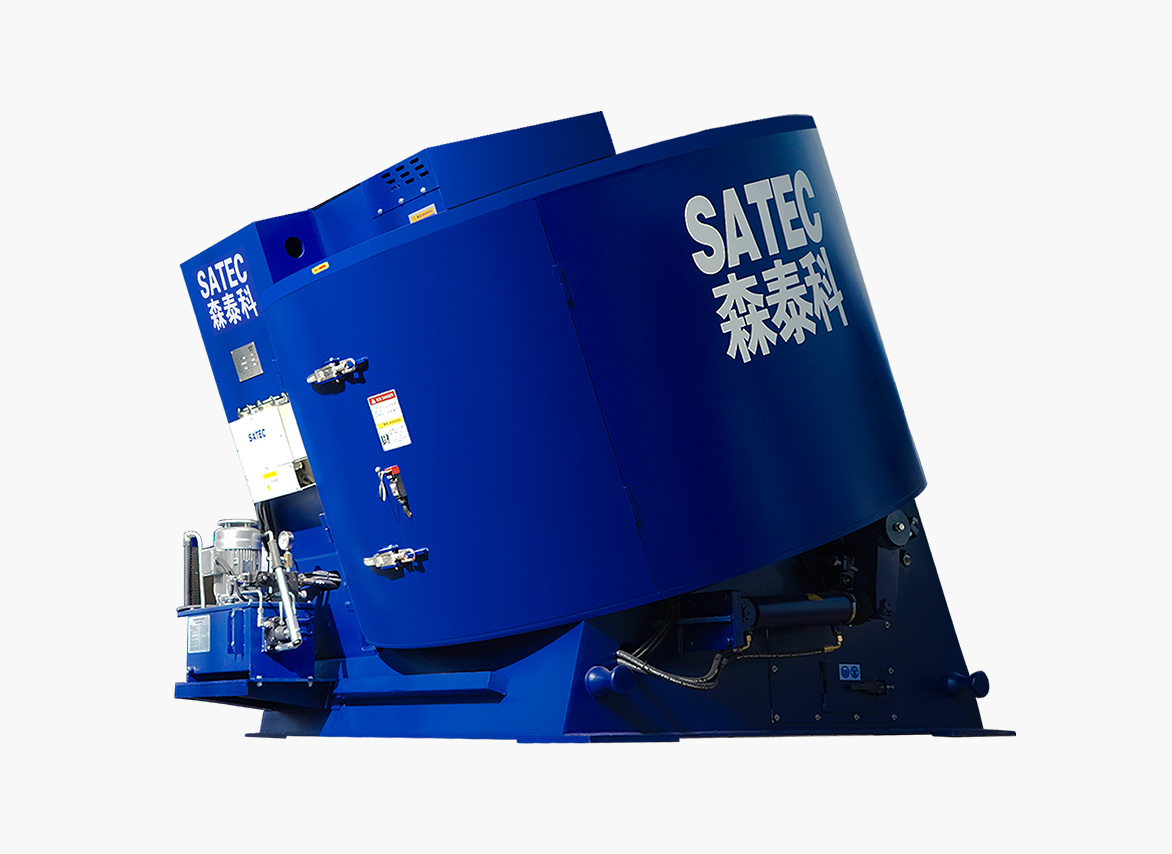

SENTEC 3D Printing Intensive Sand Mixer

A Powerful Tool for Foundry Sand Processing

High-Efficiency Mixing
Inclined drum design ensures more thorough mixing of sand and hardener, improving mold strength and consistency while significantly shortening production cycles.

·Compact & Durable Design
Space-saving structure ideal for limited workshop areas, combined with wear-resistant materials for long service life and low maintenance costs.

·Energy-Saving & Eco-Friendly
Low energy consumption reduces operating costs. Enclosed structure effectively controls dust and noise, creating a cleaner foundry environment.

·Flexible Adjustability
Dual adjustment of rotation speed and inclination angle to accommodate different sand properties and process requirements.

·Smart & User-Friendly Operation
PLC-based fully automated control system with one-touch start/stop, automatic cleaning, and fault diagnostics for effortless operation.

·Wide Material Compatibility
Fully compatible with quartz sand and ceramic sand, as well as furan resin and sodium silicate binders, meeting diverse foundry applications.

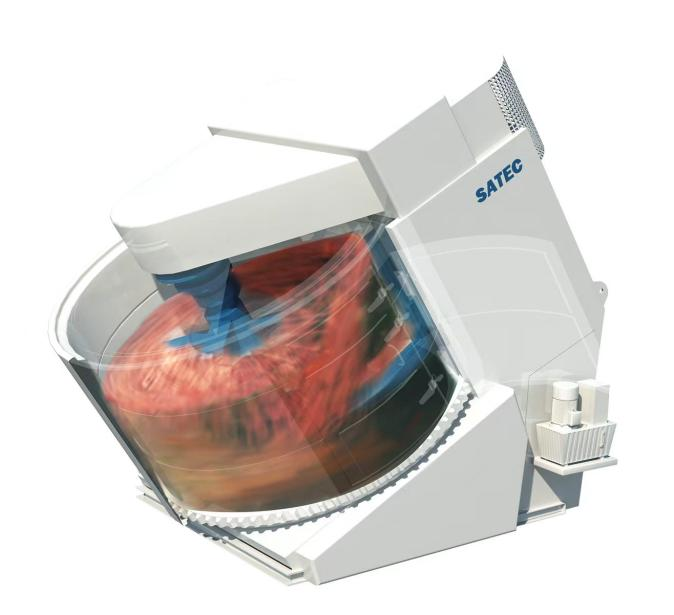

Working Principle of SENTEC 3D Printing Intensive Sand Mixer

Mixing Principle

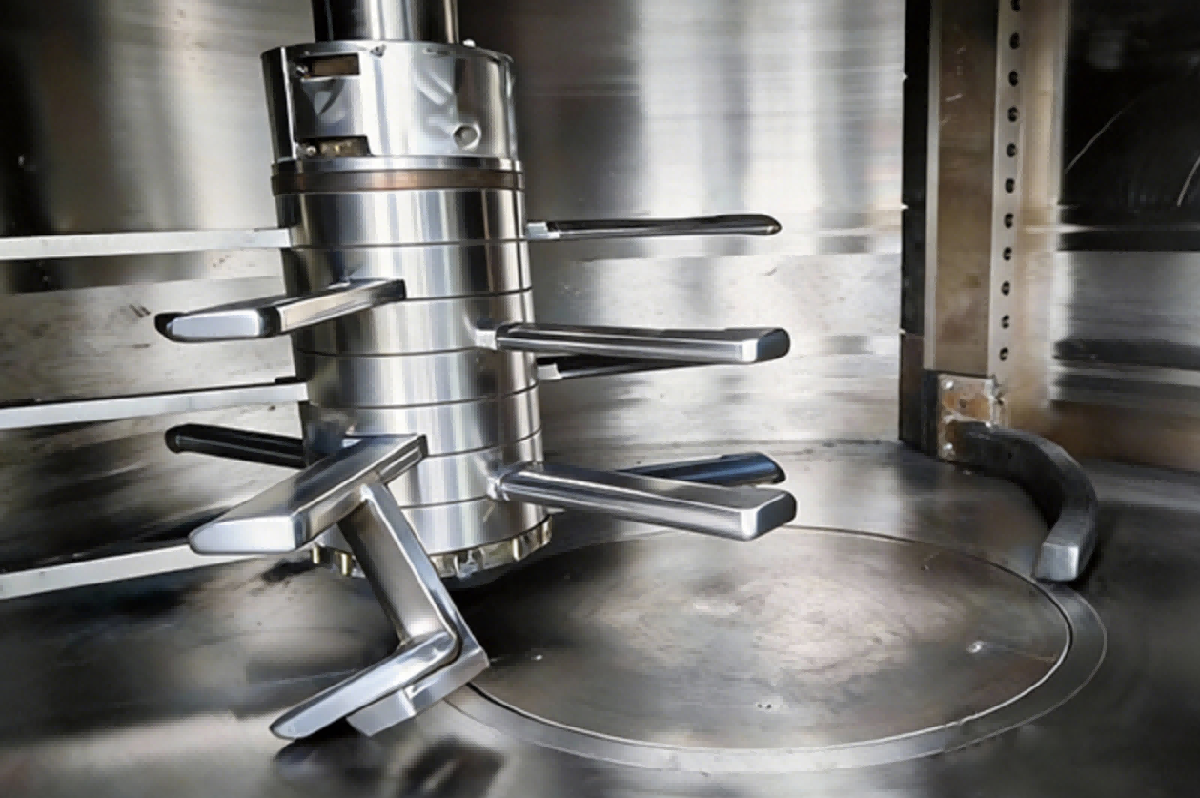

The high-speed rotating agitator drives foundry sand, binders, and hardeners into intense convective mixing inside the mixing chamber.
The agitator geometry, dimensions, and rotational speed are precisely optimized to ensure uniform material distribution, providing stable molding performance for 3D printed sand molds.

Temperature Control Principle

Equipped with a hot air heating system and temperature sensors, the mixer continuously monitors sand temperature in real time.
The system intelligently adjusts hot air temperature and airflow to maintain constant sand temperature, ensuring reliable binder curing and optimal sand performance.

Why Choose SENTEC 3D Printing Sand Mixers?

The Optimal Solution for Foundry Sand Processing

·Stable Sand Quality
Uniform mixing of sand and binders ensures mold strength, dimensional accuracy, and surface quality that meet strict foundry requirements.

·Significant Cost Reduction
Precise material dosing minimizes waste, while automated operation reduces labor costs—saving both raw material and manpower expenses.

·Substantial Efficiency Improvement
Accurate metering and high-efficiency mixing shorten cycle times and provide uninterrupted sand supply for 3D printing, maximizing production efficiency.

·Consistent Quality Output
Constant-temperature sand and uniform mixing reduce defects and scrap rates, delivering excellent batch-to-batch consistency.

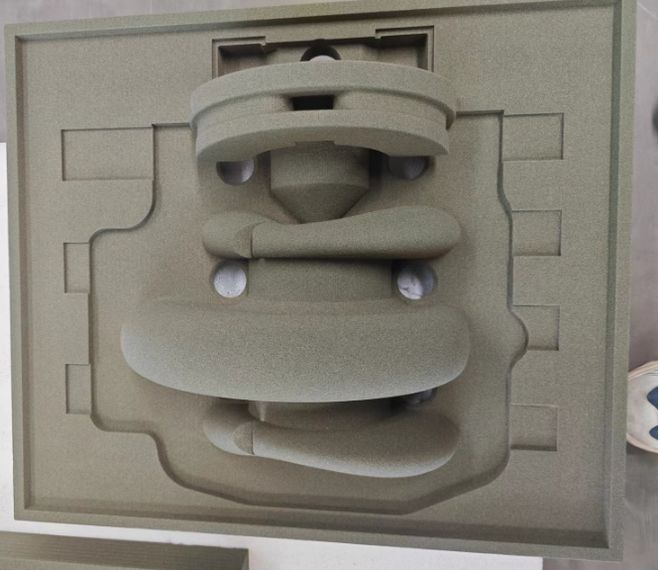

SENTEC 3D Printing Sand Mold – Six-Step Workflow

Efficient Foundry Production, One Integrated Process

1. Model Design
   Create precise 3D sand mold models using CAD software tailored to casting structure requirements.

2. Slicing Preparation
   Slice the model into layers and generate optimized printing paths and process parameters.

3. Precision Sand Mixing
   The SENTEC intensive sand mixer accurately blends sand and binders according to preset ratios, ensuring exceptional uniformity.

4. Layer-by-Layer Printing
   The 3D printing system builds the sand mold layer by layer, with binder curing during the process.

5. Post-Curing Enhancement
   Dedicated curing equipment further strengthens the sand mold to meet casting standards.

6. Final Cleaning
   Remove residual sand and binder from the surface, preparing the finished sand mold for casting.

Application Fields

Automotive Manufacturing

Engine blocks, cylinder heads, turbocharger housings, and other complex castings.

·Industrial Equipment

Pump and valve housings, gearboxes, and large mechanical components.

·Aerospace

High-precision turbine blades and engine components.

·Artistic Casting

Complex sculptures and customized artistic castings.

·R&D and Prototyping

Rapid prototype verification to significantly shorten product development cycles.
